fish pond liner waterproofing geomembrane fish farming tanks for sale,ASTM Standard HDPE LDPE LLDPE EPDM Pond Liner Geom

Product Description

Product Feature

1) Good physical and mechanic performance
2) High tearing resistance, strong deformation adaptability
3) Puncture-resisting, aging resisting, ultra-violet radiation, oil and salt, and corrosion resistance
4) Good adaptability to high and low temperature, non-toxicity, long service life
5) Good waterproof, drainage, anti-seepage and damp proof effects
6) Complete width and thickness specifications, low cost and easy installation.

Product Application Range

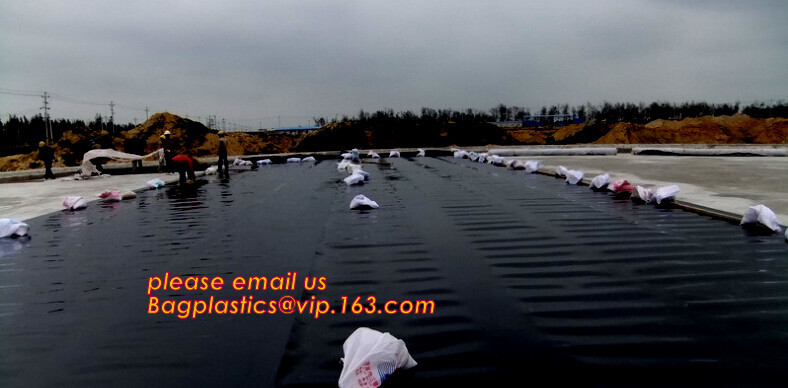

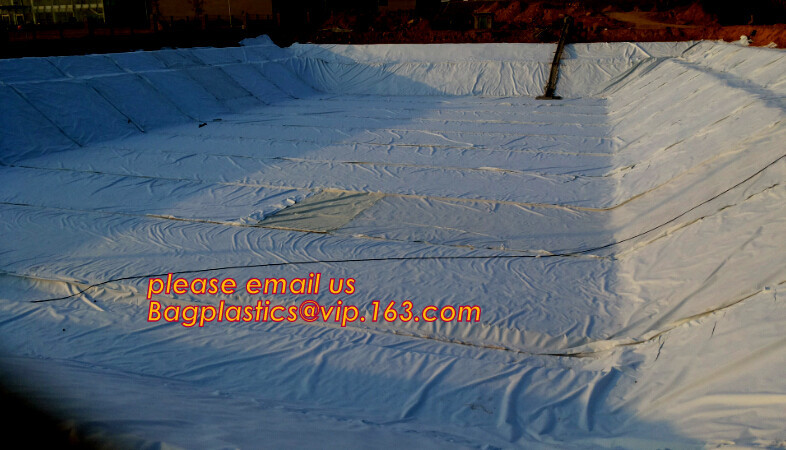

1) Domestic and Hazardous Waste landfills

2) Landfill closures
3) Heap leach mining and tailing dams
4) Biogas Management
5) Floating Covers
6) Waste water treatment reservoirs
7) Water conveyance channels and reservoirs
8) Temporary tanks
9) Industrial sludge storage and drying ponds
10) Secondary containment
11) Architectural ponds and lakes
12) Brine evaporation ponds
13) Aquaculture ponds
14) Food and water grade reservoirs and tanks

Environmental Protection hdpe smooth fish farm pond liner geomembrane

Our high density polyethylene (HDPE) geomembranes provide an impermeable barrier against a wide range of solids and liquids. They exhibit excellent chemical and UV resistance,impermeability, and high yield and welded seam strengths, which is widely used as the liner.(model according to the thickness of distinction, different thickness and different price) production capacity: thickness:0.1 mm -6 mm, width: 1-8 meters. It is suitable for seepage control in special industries, and is widely used for aquaculture, seepage control, reservoirs or sewage treatment ponds.

Product Parameter

Thickness	0.75	1.0	1.25	1.50	2.00	2.50	3.00
Density g/m2	≥0.94	≥0.94	≥0.94	≥0.94	≥0.94	≥0.94	≥0.94
Tensile yield strength (N/mm)	≥11	≥15	≥18	≥22	≥29	≥37	≥44
Tensile breaking strength (N/mm)	≥20	≥27	≥33	≥40	≥53	≥67	≥80
Bongation at yield(%)	≥12	≥12	≥12	≥12	≥12	≥12	≥12
Elongation at break(%)	≥700	≥700	≥700	≥700	≥700	≥700	≥700
Tear resistance(N)	≥93	≥125	≥160	≥190	≥250	≥315	≥375
Puncture strength(N)	≥240	≥320	≥400	≥480	≥640	≥800	≥960
Tensile load stress cracking	≥300	≥300	≥300	≥300	≥300	≥300	≥300
Carbon black content(%)	2.0-3.0	2.0-3.0	2.0-3.0	2.0-3.0	2.0-3.0	2.0-3.0	2.0-3.0



Product Feature

1) Good physical and mechanic performance
2) High tearing resistance, strong deformation adaptability
3) Puncture-resisting, aging resisting, ultra-violet radiation, oil and salt, and corrosion resistance
4) Good adaptability to high and low temperature, non-toxicity, long service life
5) Good waterproof, drainage, anti-seepage and damp proof effects
6) Complete width and thickness specifications, low cost and easy installation.

Product Name	pool cover, solar cover, pool blanket, solar blanket
Material	polyethylene
Color	Blue/Gold,Blue/Sliver,Blue/Black,Blue,Green or customized
Size	Customized
Thickness	12mm or 15mm
Shape	according to your request
Bubble height	3.5mm, 3.7mm, or customized
eyelet	ok
edge	ok

Multi layers aluminum foil insulations for roofing, wall and floor

Aluminum Bubble Foil Heat Reflective Insulation Sheets for roof floor an dwall

Product Introduction:

The product consists of three layers of aluminum foil with plastic bubble laminated between the aluminum foil,provides excellent insulation: Reflects up to 97% of radiant energy in addition to resisting other types of heat transfer from conduction, convection and radiation. The two side aluminum foil forms an effective barrier against moisture, air currents and vapors.
It is an economical solution for a wide range of industrial, manufacturing and consumer applications.

Bagease	Bagplastics
Main Material	Alu + (single / double) PE bubble + Alu
Other Material Structure	MPET + (single / double) PE bubble MPET + (single / double) PE bubble + MPET Alu + (single / double) PE bubble Alu + (single / double) PE bubble + Alu Alu + woven + (single / double) PE bubble + Alu Alu + woven + (single / double) PE bubble + woven + Alu Alu + woven + (single / double) PE bubble + Alu + Anti-glare coating Alu + (single / double) PE bubble + woven + Alu + Anti-glare coating
Air Bubble Size	¢ : 10mm, H: 2.5mm; ¢ : 10mm, H: 4mm; ¢ : 10mm, H: 6mm; ¢ : 20mm, H: 7mm; ¢ : 25mm, H: 8mm; ¢ : 25mm, H: 10mm
Coating Color	Blue, Green, Pink, Orange or customized
MPET/ Al Foil Thickness:	12micron/7 micron
Product Thickness:	2mm-10mm
Reflectivity:	96%~97%
Normal Roll size:	1.2m *30m/roll ; 1.2m *40m/roll; 1.35m *22.25m/roll; can be customized
Packing:	1 roll/ clear plastic bag or customized logo printing packing bag accept

Data Sheet:

Material Structure: AL/Bubble/AL
Bubble Size:D10mm*H 4mm(10*2.5/10*4/10*6/20*7/25*10)choose the bubble size
Bubble Weight:130gsm
Roll Width:1.2m (lenth can be customized)
PROPERTIES	TEST DATA	UNIT
Thickness	3.5	mm
Weight	256	g/M2
Emissivity	0.03-0.04	COEF
Thermal conductivity	0.034	w/m0
Apparent Density	85	kg/m3
Reflectivity	95-96	%
Water Vapour Transmission	0.013	g/M2kpa
Corrosion	doesn't generate
Tensile Strength(MD)	16.98	Mpa
Tensile Strength(TD)	16.5	Mpa

Installation methods and Installation Projects:

• Measure the metal roof to determine the amount of bubble foil wrap insulation required for the project. Purchase approximately 10 to 15 percent more product than required to account for overlapping and to provide the proper air gap between the purlins -- the horizontal lengths of wood that support the roof panels between the rafters.
• Cover the metal roof purlins with double-sided adhesive tape. Unroll the foil wrap insulation and attach it to the first purlin. Continue to unroll the foil insulation and attach it the remaining purlins, paying attention to allow the insulation to sag at least 1 inch between the horizontal members. The sagging provides an air gap that raises the insulation’s efficiency.
• Continue to attach the Aluminum foil bubble insulation to the metal roofing purloins, overlapping the adjoining sheets 2 inches as you go. This is a temporary hold to keep the bubble foil wrap in place while you prepare the next step.
• Secure the bubble foil to the framing members with furring strips. Attach the furring strips perpendicular to the purloins every 24 inches to the framing members with 2-inch metal screws, paying attention to not disrupt the insulation’s sagging. Use a drill equipped with a screwdriver bit to drive the screws into the framing members.
• Cover the seams of the bubble insulation with foil tape.

Application:

Roof,Ceiling,Wall,Floor,Attic,Livestock Shelters,Basement,Factory buildings,Duct wrappings,Container liner,Sun-stop cover and vehicles.
1. Thermal insulation and light inflecting in the constrction and protection for both cold winter and water piper
2. Separation of refrigerator,warm keeping for center air-conditioned,refrigerator and other home appliances
3. Thermal insulation,sound absorption and noise reduction for car ,train, refrigerator car and laboratory, moisture proof cushion for traveling.

Building insulation material for construction is a brand new heat insulation product manufactured of polyethylene bubble/foam sheet faced with aluminium foil on the one or two sides. It can reflect 97% radiant heat and reduces energy costs used in winter heating and summer cooling. Reflective Foil thermal insulation is only a few millimeters thick, its two sides of aluminium foil reflects more than 97% thermal energy that reaches it .In summer, almost all the sunlight and heat is bounced back into the air, Keeping the heat out of the air conditioned building. In winter, Almost all the heat generated inside the building is retained. Also, The bubble/foam sheet in between the aluminium foil offer thousands of empety air cells, which makes the heat more difficult to pass through.Tag:
