Product Description
Product Feature
1) Good physical and mechanic performance
2) High tearing resistance, strong deformation adaptability
3) Puncture-resisting, aging resisting, ultra-violet radiation, oil and salt, and corrosion resistance
4) Good adaptability to high and low temperature, non-toxicity, long service life
5) Good waterproof, drainage, anti-seepage and damp proof effects
6) Complete width and thickness specifications, low cost and easy installation.
Product Application Range
1) Domestic and Hazardous Waste landfills
2) Landfill closures
3) Heap leach mining and tailing dams
4) Biogas Management
5) Floating Covers
6) Waste water treatment reservoirs
7) Water conveyance channels and reservoirs
8) Temporary tanks
9) Industrial sludge storage and drying ponds
10) Secondary containment
11) Architectural ponds and lakes
12) Brine evaporation ponds
13) Aquaculture ponds
14) Food and water grade reservoirs and tanks

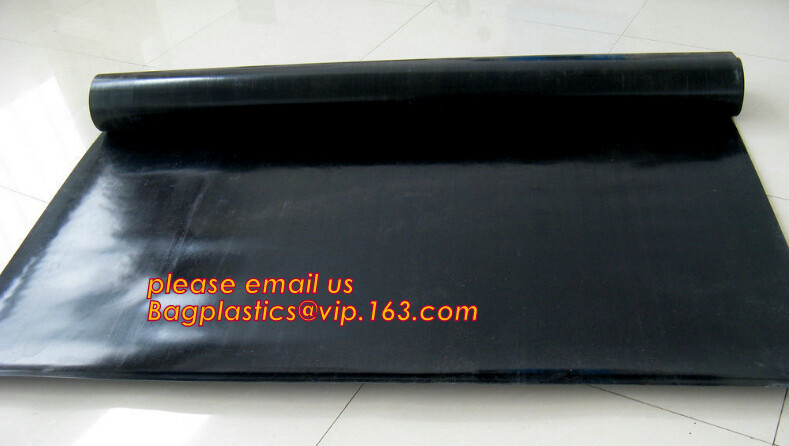

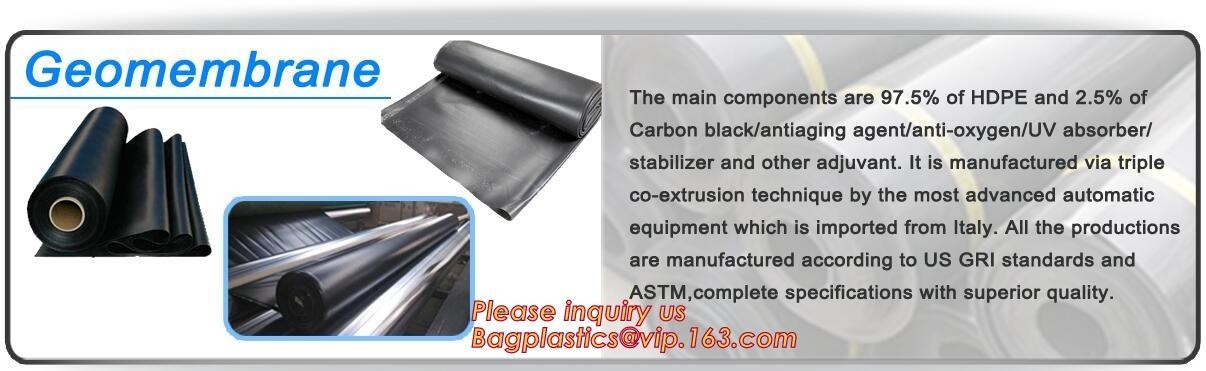

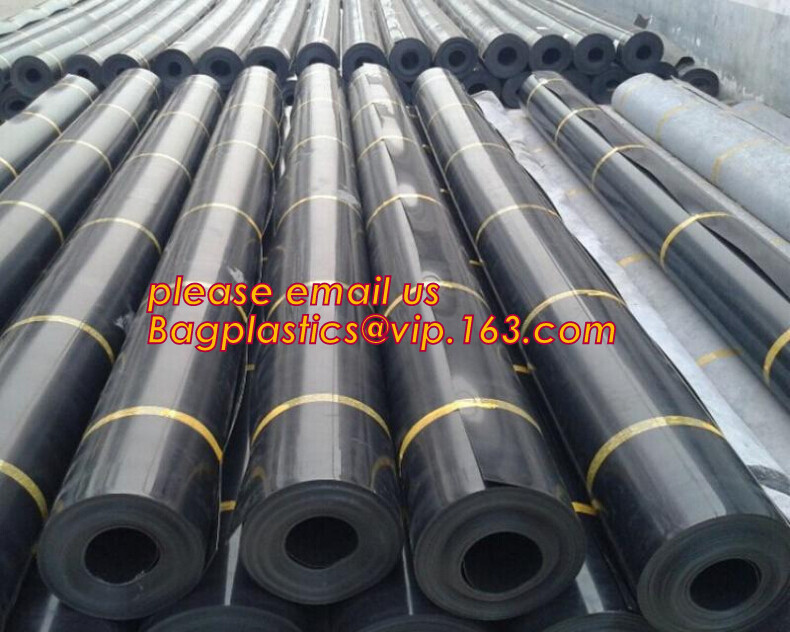

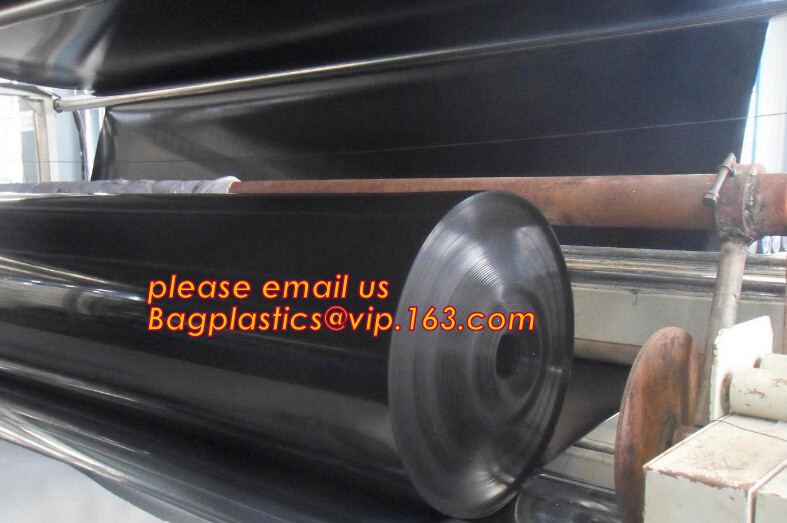

Environmental Protection hdpe smooth fish farm pond liner geomembrane
Our high density polyethylene (HDPE) geomembranes provide an impermeable barrier against a wide range of solids and liquids. They exhibit excellent chemical and UV resistance,impermeability, and high yield and welded seam strengths, which is widely used as the liner.(model according to the thickness of distinction, different thickness and different price) production capacity: thickness:0.1 mm -6 mm, width: 1-8 meters. It is suitable for seepage control in special industries, and is widely used for aquaculture, seepage control, reservoirs or sewage treatment ponds.
Product Parameter
| Thickness | 0.75 | 1.0 | 1.25 | 1.50 | 2.00 | 2.50 | 3.00 |
| Density g/m2 | ≥0.94 | ≥0.94 | ≥0.94 | ≥0.94 | ≥0.94 | ≥0.94 | ≥0.94 |
| Tensile yield strength (N/mm) | ≥11 | ≥15 | ≥18 | ≥22 | ≥29 | ≥37 | ≥44 |
| Tensile breaking strength (N/mm) | ≥20 | ≥27 | ≥33 | ≥40 | ≥53 | ≥67 | ≥80 |
| Bongation at yield(%) | ≥12 | ≥12 | ≥12 | ≥12 | ≥12 | ≥12 | ≥12 |
| Elongation at break(%) | ≥700 | ≥700 | ≥700 | ≥700 | ≥700 | ≥700 | ≥700 |
| Tear resistance(N) | ≥93 | ≥125 | ≥160 | ≥190 | ≥250 | ≥315 | ≥375 |
| Puncture strength(N) | ≥240 | ≥320 | ≥400 | ≥480 | ≥640 | ≥800 | ≥960 |
| Tensile load stress cracking | ≥300 | ≥300 | ≥300 | ≥300 | ≥300 | ≥300 | ≥300 |
| Carbon black content(%) | 2.0-3.0 | 2.0-3.0 | 2.0-3.0 | 2.0-3.0 | 2.0-3.0 | 2.0-3.0 | 2.0-3.0 |
Product Feature
1) Good physical and mechanic performance
2) High tearing resistance, strong deformation adaptability
3) Puncture-resisting, aging resisting, ultra-violet radiation, oil and salt, and corrosion resistance
4) Good adaptability to high and low temperature, non-toxicity, long service life
5) Good waterproof, drainage, anti-seepage and damp proof effects
6) Complete width and thickness specifications, low cost and easy installation.
| Product Name | pool cover, solar cover, pool blanket, solar blanket |
| Material | polyethylene |
| Color | Blue/Gold,Blue/Sliver,Blue/Black,Blue,Green or customized |
| Size | Customized |
| Thickness | 12mm or 15mm |
| Shape | according to your request |
| Bubble height | 3.5mm, 3.7mm, or customized |
| eyelet | ok |
| edge | ok |
Multi layers aluminum foil insulations for roofing, wall and floor
Introduction
Bagease Multi foil Insulation material provide good thermal barrier property,but only with 38mm
thickness.Compared with the traditional insulation material,like glass wool,foam,rock wool,our
material can not only seal your roof from the wind and dust as a envelop,but keep the inside air
multi-foil insulation material can give you a very high thermal barrier rate,7.17M2.k/w.
Bagease Multi Foil Insulation Material is a very flexible ,easy to install and high performance thermal insulation material,in a 38 mm thin,flexible,multi-layer blankets for roofs and walls. It is an insulation solution complying with the highest insulation, airtightness and vapour resistance performance while being only 38mm thick. It is ideal for roofs and attic conversions.
Bagease Multi foil Insulation material provide good thermal barrier property,but only with 38mmthickness.Compared with the traditional insulation material,like glass wool,foam,rock wool,our,material can not only seal your roof from the wind and dust as a envelop,but keep the inside air.multi.foil insulation material can give you a very high thermal barrier rate,7.17M2.k/w.
Working Principle
The flow smoothly,providing you a good ventilation living surrounding.after installing,your roof will
retain dry and warm in winter,while prevent overheating in summer.The thickness is 38mm and
the beams and rafter can be lefted exposed,so our material will save valuable living space in the attic.
Technology Data
| Structure | Item | Value | Unit |
| 17 layers | Total layer number | 17 | layer |
| Weight of polywool | 55 | g/m2 |
| Thickness of EPE foam | 0.75 | mm |
| Thickness of silver film | 12 | micron |
| Quantity of silver film | 10 | layers |
| Weight of both sides silver woven | 130 | g/m2 |
| Strength of woven | MD | 580 | N/50mm |
| CD | 580 | N/50mm |
| Protective silver film | 12 | micron |
| Emissivity of outer | 0.05 | |
| Emissivity of inner | 0.05 | |
| R Value of blanket | | |
| Sewing size of stitches | Customized | |
| Position of sewing | 5 | lines |
| Thickness of finished material(well pressed) | Around 15 | mm |
| Weight of finished roll | 10.8 | kg |
| Square meter |
Aluminum Bubble Foil Heat Reflective Insulation Sheets for roof floor an dwall
Product Introduction:
The product consists of three layers of aluminum foil with plastic bubble laminated between the aluminum foil,provides excellent insulation: Reflects up to 97% of radiant energy in addition to resisting other types of heat transfer from conduction, convection and radiation. The two side aluminum foil forms an effective barrier against moisture, air currents and vapors.
It is an economical solution for a wide range of industrial, manufacturing and consumer applications.
| Bagease | Bagplastics |
| Main Material | Alu + (single / double) PE bubble + Alu |
| Other Material Structure | MPET + (single / double) PE bubble
MPET + (single / double) PE bubble + MPET
Alu + (single / double) PE bubble
Alu + (single / double) PE bubble + Alu
Alu + woven + (single / double) PE bubble + Alu
Alu + woven + (single / double) PE bubble + woven + Alu
Alu + woven + (single / double) PE bubble + Alu + Anti-glare coating Alu + (single / double) PE bubble + woven + Alu + Anti-glare coating |
| Air Bubble Size | ¢ : 10mm, H: 2.5mm; ¢ : 10mm, H: 4mm; ¢ : 10mm, H: 6mm; ¢ : 20mm, H: 7mm; ¢ : 25mm, H: 8mm; ¢ : 25mm, H: 10mm |
| Coating Color | Blue, Green, Pink, Orange or customized |
| MPET/ Al Foil Thickness: | 12micron/7 micron |
| Product Thickness: | 2mm-10mm |
| Reflectivity: | 96%~97% |
| Normal Roll size: | 1.2m *30m/roll ; 1.2m *40m/roll; 1.35m *22.25m/roll; can be customized |
| Packing: | 1 roll/ clear plastic bag or customized logo printing packing bag accept |
Data Sheet:
| Material Structure: AL/Bubble/AL |
| Bubble Size:D10mm*H 4mm(10*2.5/10*4/10*6/20*7/25*10)choose the bubble size |
| Bubble Weight:130gsm |
| Roll Width:1.2m (lenth can be customized) |
| PROPERTIES | TEST DATA | UNIT |
| Thickness | 3.5 | mm |
| Weight | 256 | g/M2 |
| Emissivity | 0.03-0.04 | COEF |
| Thermal conductivity | 0.034 | w/m0 |
| Apparent Density | 85 | kg/m3 |
| Reflectivity | 95-96 | % |
| Water Vapour Transmission | 0.013 | g/M2kpa |
| Corrosion | doesn't generate | |
| Tensile Strength(MD) | 16.98 | Mpa |
| Tensile Strength(TD) | 16.5 | Mpa |
Installation methods and Installation Projects:
- Measure the metal roof to determine the amount of bubble foil wrap insulation required for the project. Purchase approximately 10 to 15 percent more product than required to account for overlapping and to provide the proper air gap between the purlins -- the horizontal lengths of wood that support the roof panels between the rafters.
- Cover the metal roof purlins with double-sided adhesive tape. Unroll the foil wrap insulation and attach it to the first purlin. Continue to unroll the foil insulation and attach it the remaining purlins, paying attention to allow the insulation to sag at least 1 inch between the horizontal members. The sagging provides an air gap that raises the insulation’s efficiency.
- Continue to attach the Aluminum foil bubble insulation to the metal roofing purloins, overlapping the adjoining sheets 2 inches as you go. This is a temporary hold to keep the bubble foil wrap in place while you prepare the next step.
- Secure the bubble foil to the framing members with furring strips. Attach the furring strips perpendicular to the purloins every 24 inches to the framing members with 2-inch metal screws, paying attention to not disrupt the insulation’s sagging. Use a drill equipped with a screwdriver bit to drive the screws into the framing members.
- Cover the seams of the bubble insulation with foil tape.
Application:
Roof,Ceiling,Wall,Floor,Attic,Livestock Shelters,Basement,Factory buildings,Duct wrappings,Container liner,Sun-stop cover and vehicles.
1. Thermal insulation and light inflecting in the constrction and protection for both cold winter and water piper
2. Separation of refrigerator,warm keeping for center air-conditioned,refrigerator and other home appliances
3. Thermal insulation,sound absorption and noise reduction for car ,train, refrigerator car and laboratory, moisture proof cushion for traveling.
Building insulation material for construction is a brand new heat insulation product manufactured of polyethylene bubble/foam sheet faced with aluminium foil on the one or two sides. It can reflect 97% radiant heat and reduces energy costs used in winter heating and summer cooling. Reflective Foil thermal insulation is only a few millimeters thick, its two sides of aluminium foil reflects more than 97% thermal energy that reaches it .In summer, almost all the sunlight and heat is bounced back into the air, Keeping the heat out of the air conditioned building. In winter, Almost all the heat generated inside the building is retained. Also, The bubble/foam sheet in between the aluminium foil offer thousands of empety air cells, which makes the heat more difficult to pass through.1) Thickness: 0.017-0.03MM
2) Width: 300MM 450MM 500MM
3) Length: as your request
4) Color: transparent/clear,black,green,and so on
5) Net weight: on buyer's option
6) Packing: cartons or pallets.
Product features:
1.100% New material and accept sample order.
2.Excellence and beautiful, the high grade product.
3.Easy to be pulled out and cut.
4. Transparency and no drape and even thickness.
5. Easy to use, can be recycled.
