Product Description

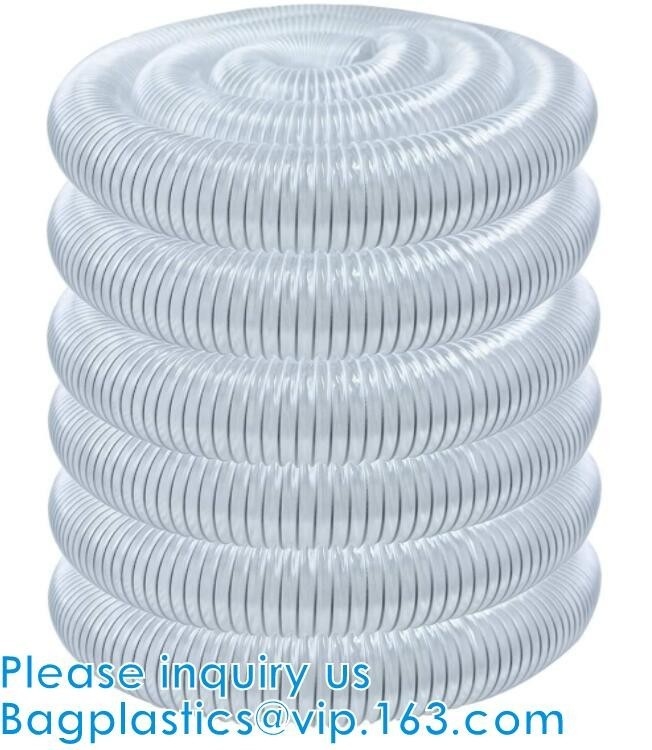

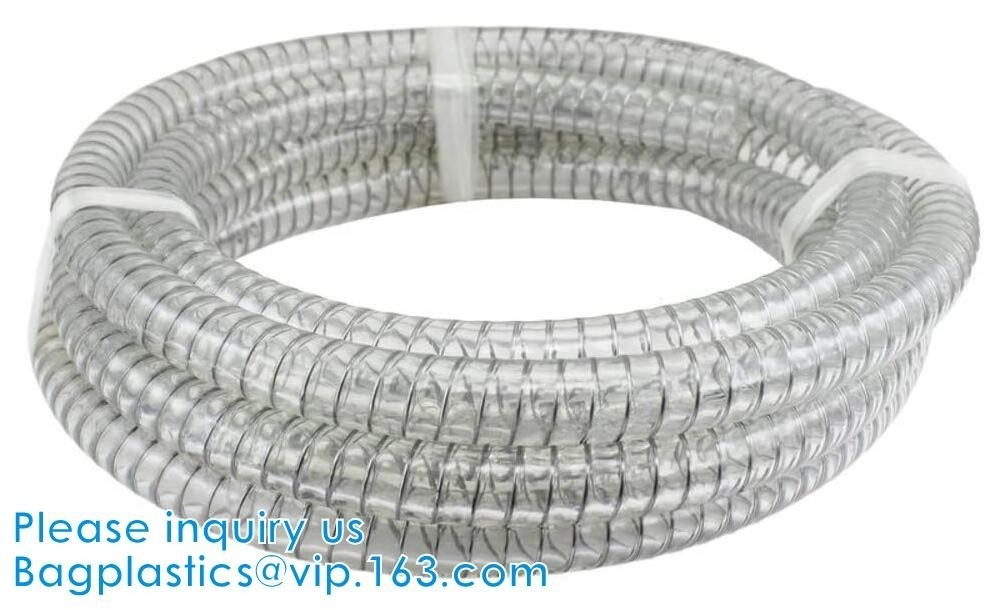

PVC Flexible Tubing High Pressure Heavy Duty UV Chemical Resistant Vinyl Hose PVC Steel Wire Spiral Reinforced Water Hose, Coveying Water, Oil, Powder, PVC Flexible Tubing, PVC Flexible Tubing Please inquiry us
Bagplastics@vip.163.com

manufacture transparent pvc steel wire spiral reinforced water hose,coveying water, oil and powder in the factories, agr

Pvc tubing is a polyvinyl chloride plastic with plasticizers to make it more flexible and transparent. The steel wire design helps reinforce the strength of the hose to allow for both high pressure and use in suction applications. The hose is capable of maintaining full vacuum at room temperature. The BAGEASE.CN Energy steel wire PVC tubing works excellent in many fluid applications where general chemical resistivity and high pressure handling is required. For industrial use only. This PVC tubing may not be used with food products or drinking applications.

• Id: 1, OD: 1-3/4'', wall thickness: 7/45'' Please inquiry us
  Bagplastics@vip.163.com
• Max working pressure: 145 psi, bursting pressure: 435, minimum bend radius: 6''
• Temperature range: 25°f to 150°f (-4°c to 66°c)
• Firmness: 73a (firm), uv-resistant, Color: clear-transparent, single line PVC
• Vacuum/high pressure rated/steel wire reinforced

Widely used for drawing and coveying water, oil and powder in the factories, agriculture, engineering, foodstuffs and sanitation.

The hose is used for foodstuffs is made of special materials. Please inquiry us
Bagplastics@vip.163.com

This hose can be used for conveying milk, beverage, disstilled liquor, beer, jam and other food.

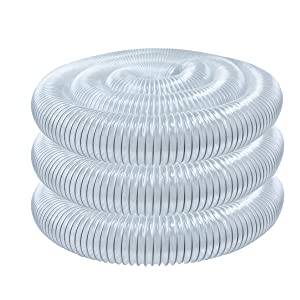

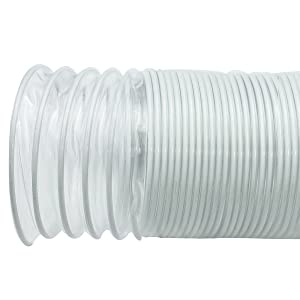

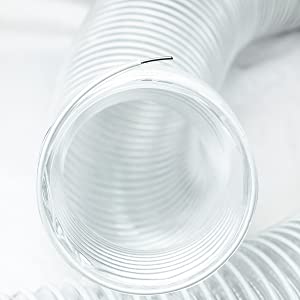

The 2-1/2-Inch PVC Dust Collector Hose  BAGEASE.CN

BAGEASE.CN 70129/70144/70240

- A practical, safe and cost effective dust collection hose

- Enhance your existing workshop dust collection and filtration systems

- Length: 10' (70129), 20' (70144), 50' (70240)

Rated Safe

With dust collection, one must always consider the dangers of static electricity and fire risk. This PVC hose features a flame retardant construction (UL94-HB), is temperature resistant (up to 176°F) and is capable of electrostatic discharge (when grounded). It also offers exceptional resistance to chemicals along with acidic and alkaline materials.

Product Specifications:

• Construction: Heavy Duty Soft PVC (Polyvinyl Chloride)
• Reinforced Spiral Spring Steel Wire: Spring Steel Wire
• Diameter: 2-1/2 inches
• Wall Thickness: 0.5 mm / 1/64”
• Flammability Rating: UL94-HB
• Compression Ratio: 3:1
• Temperature Range: -50°F to 158°F (short term up to176°F)
